Oase Bio Tec ScreenMatic 90000
- Incl. OASE Clear Water Guarantee
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media for optimal development of filter bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging: Distributes the water uniformly on the belt filter

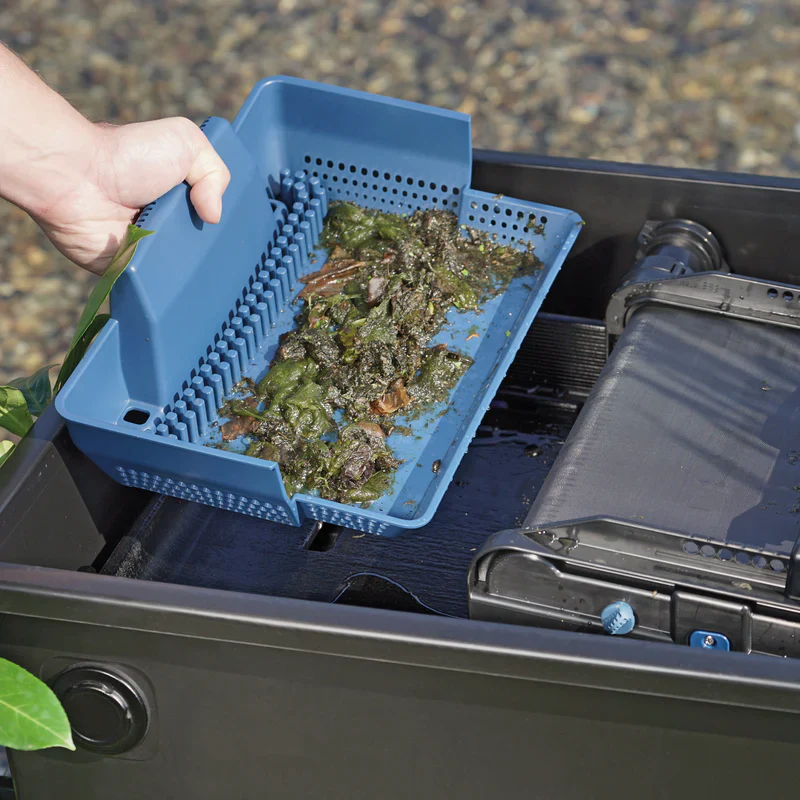

- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Highly effective flow-through filter for ponds up to 90.0 m³
- Lids of models 40,000 and 60,000 with storm-safe fastening clips
| Product Number | 03OG005 | 46178 |
| Rated voltage (primary, secondary) | 230 V / 50 Hz, 12 V / AC |
| Power consumption - W | 5 W |
| Cable length 12 V device | 2.10 (Power unit) + 5.00 m |
| Net weight | 27.000 kg |
| Guarantee (+ request guarantee) - years | 2 + 1 Years |
| Total number of filter foams – pc. | 16 Units |
| Number of blue filter foams – pc. | 4 Units |
| Number of red filter foams – pc. | 6 Units |
| Number of purple filter foams – pc. | 6 Units |
| Special filter granulate – kg | 5 kg |
| Temperature display | No |
| Coarse dirt separation – micrometres | 300 µm |
| Connection inlet - mm | 25 / 32 / 38 / 50 mm |
| Connection inlet | 1", 1 ¼", 1 ½", 2" |
| Connections outlet | DN 110 |
| Connections, sludge discharge | DN 50 |
| Min. flow rate - l/h | 8000 l/h |
| Max. flow rate - l/h | 12500 l/h |
| Suitable for ponds up to max. – m³ | 90 m³ |
| Suitable for ponds with fish stock – m³ | 45 m³ |
| Suitable for ponds with koi – m³ | 22.5 m³ |
| Connection to |
Bitron C 36 - 110 W, Bitron Eco 120 - 240 W |
| Part Name | Part Number |
| ASM filter lid incl. design plate | 45320 | 11OS075 |
| ASM container | 49600 | 11OS076 |
| Transformer 6 VA | 15118 | 11OS084 |
| ASM BioTec ScreenMatic | 42383 | 11OS239 |
| Woven fabric | 42325 | 11OS208 |
| Traction unit | 44183 | 11OS095 |
| O-Ring | 25691 | 11OS147 |
| Spare drain | 44182 | 11OS087 |
| Gasket set outlet | 34859 | 11OS260 |
| Replacement set blue | 42895 | 11OS010 |
| Foam holder locking clip | 45325 | 11OS337 |
| Repl. set foam red/purple | 42893 | 11OS002 |
$2,424.32
Oase Bio Tec ScreenMatic 90000—
$2,424.32
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Incl. OASE Clear Water Guarantee
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media for optimal development of filter bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Highly effective flow-through filter for ponds up to 90.0 m³
- Lids of models 40,000 and 60,000 with storm-safe fastening clips
| Product Number | 03OG005 | 46178 |
| Rated voltage (primary, secondary) | 230 V / 50 Hz, 12 V / AC |
| Power consumption - W | 5 W |
| Cable length 12 V device | 2.10 (Power unit) + 5.00 m |
| Net weight | 27.000 kg |
| Guarantee (+ request guarantee) - years | 2 + 1 Years |
| Total number of filter foams – pc. | 16 Units |
| Number of blue filter foams – pc. | 4 Units |
| Number of red filter foams – pc. | 6 Units |
| Number of purple filter foams – pc. | 6 Units |
| Special filter granulate – kg | 5 kg |
| Temperature display | No |
| Coarse dirt separation – micrometres | 300 µm |
| Connection inlet - mm | 25 / 32 / 38 / 50 mm |
| Connection inlet | 1", 1 ¼", 1 ½", 2" |
| Connections outlet | DN 110 |
| Connections, sludge discharge | DN 50 |
| Min. flow rate - l/h | 8000 l/h |
| Max. flow rate - l/h | 12500 l/h |
| Suitable for ponds up to max. – m³ | 90 m³ |
| Suitable for ponds with fish stock – m³ | 45 m³ |
| Suitable for ponds with koi – m³ | 22.5 m³ |
| Connection to |
Bitron C 36 - 110 W, Bitron Eco 120 - 240 W |
| Part Name | Part Number |
| ASM filter lid incl. design plate | 45320 | 11OS075 |
| ASM container | 49600 | 11OS076 |
| Transformer 6 VA | 15118 | 11OS084 |
| ASM BioTec ScreenMatic | 42383 | 11OS239 |
| Woven fabric | 42325 | 11OS208 |
| Traction unit | 44183 | 11OS095 |
| O-Ring | 25691 | 11OS147 |
| Spare drain | 44182 | 11OS087 |
| Gasket set outlet | 34859 | 11OS260 |
| Replacement set blue | 42895 | 11OS010 |
| Foam holder locking clip | 45325 | 11OS337 |
| Repl. set foam red/purple | 42893 | 11OS002 |
